ABSOLUTE SERIES™
NEW SPECTRUM LED TECHNOLOGY
What's Different With ABSOLUTE™?

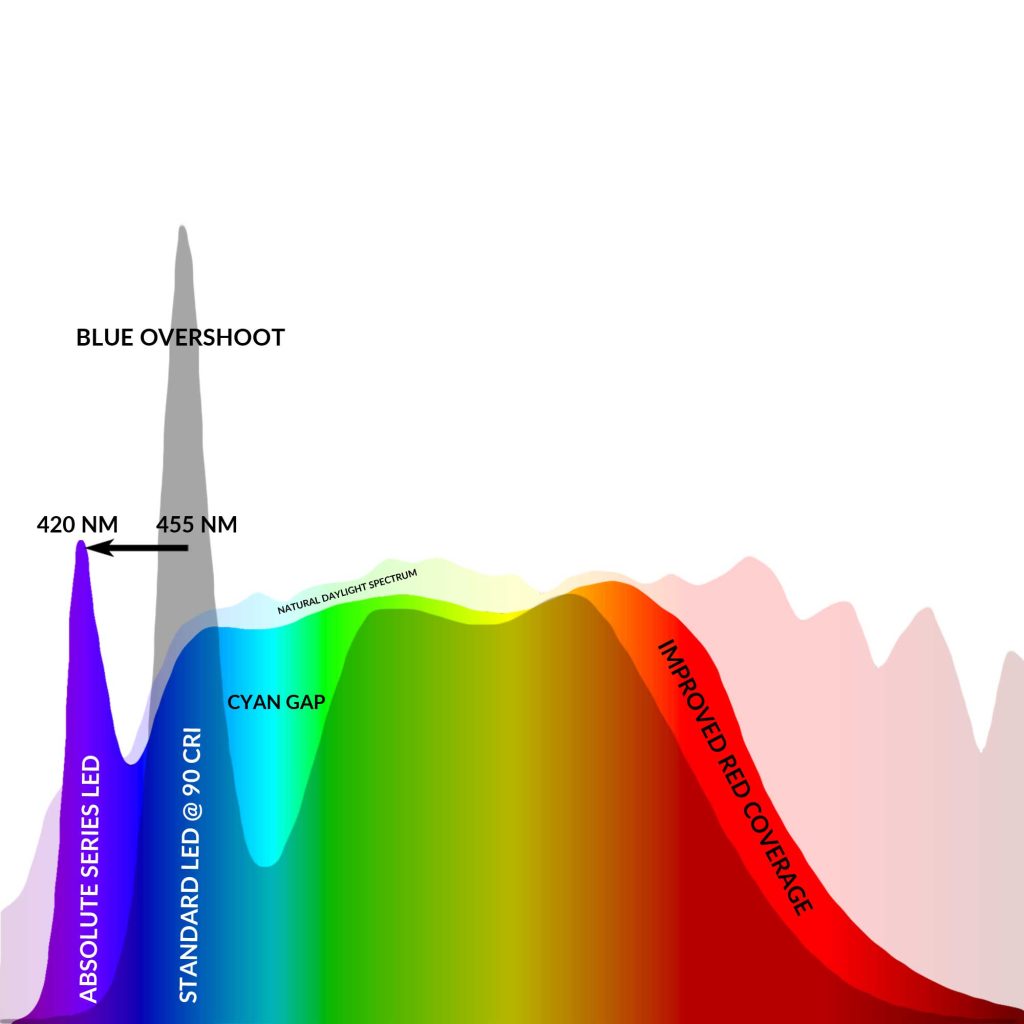

Traditional white LEDs use 455 nanometer blue die as the underlying light source, and a dual-phosphor mix of green and red phosphors to achieve a semi-full spectrum light output.
This results in what is commonly referred to as the “cyan gap” – where there is a lack of light energy in the region between blue and green wavelengths, and an overshoot of blue wavelength energy. A close look at color rendering scores such as CRI R12 will also reveal that blue colors may appear over or under-saturated.
ABSOLUTE SERIES™ LEDs utilize a different method of producing white light to eliminate the cyan gap and blue overshoot. By shifting the underlying light source wavelength to a violet 420 nm die, a fuller, wider spectrum is made possible. This also provides energy coverage down to the nUV wavelength range.

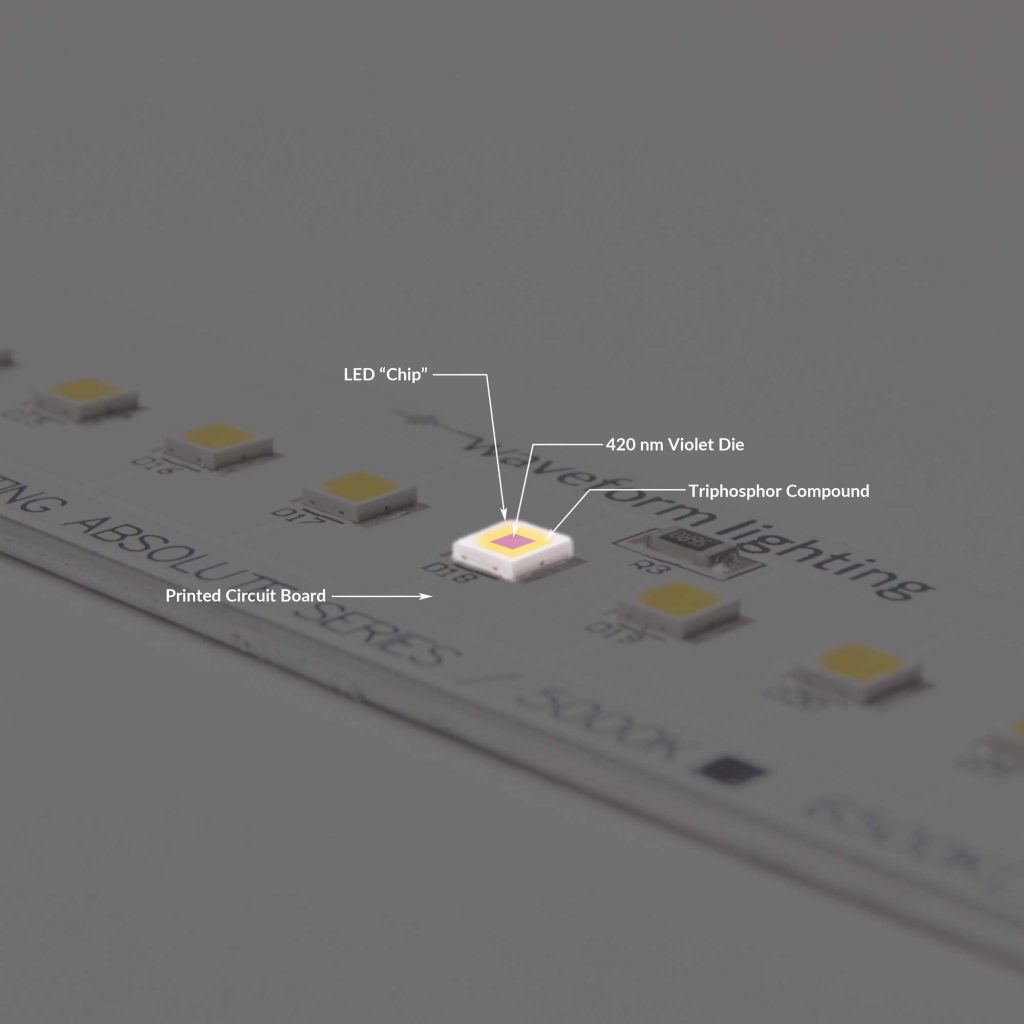

Advanced Light Recipes
To address the spectral deficiencies in standard LEDs, ABSOLUTE LEDs rely on a different set of material compositions at different wavelengths.
In order to mitigate the impact of a sharp peak in the blue wavelength region, the peak wavelength of the underlying light source die is shifted to 420 nm. Immediately, this provides the additional benefit of wavelength energy in the violet region.
Then, a triphosphor mix of red, green and blue phosphors are added and mixed into the LED chip using a precise light recipe. By adding a blue phosphor into the mix, light emission in the blue region of the spectrum is much smoother, simultaneously eliminating the blue overshoot as well as cyan gap.
Improved White Rendering & Fluorescence
Despite their ordinary appearance, many objects we encounter on a daily basis contain materials that exhibit fluorescence.
For example, white industrial products and textiles such as paper and shirts contain optical brightening agents which react to full spectrum light that contains violet wavelengths, such as natural daylight.
Standard LEDs, however, lack sufficient violet wavelength energy to activate optical brighteners. This results in a dull, yellowish white that does not match an object’s appearance under natural daylight.
White rendering is not adequately captured in the CRI evaluation method, but is an important consideration in applications where the accurate rendition of objects containing fluorescence is critical.
